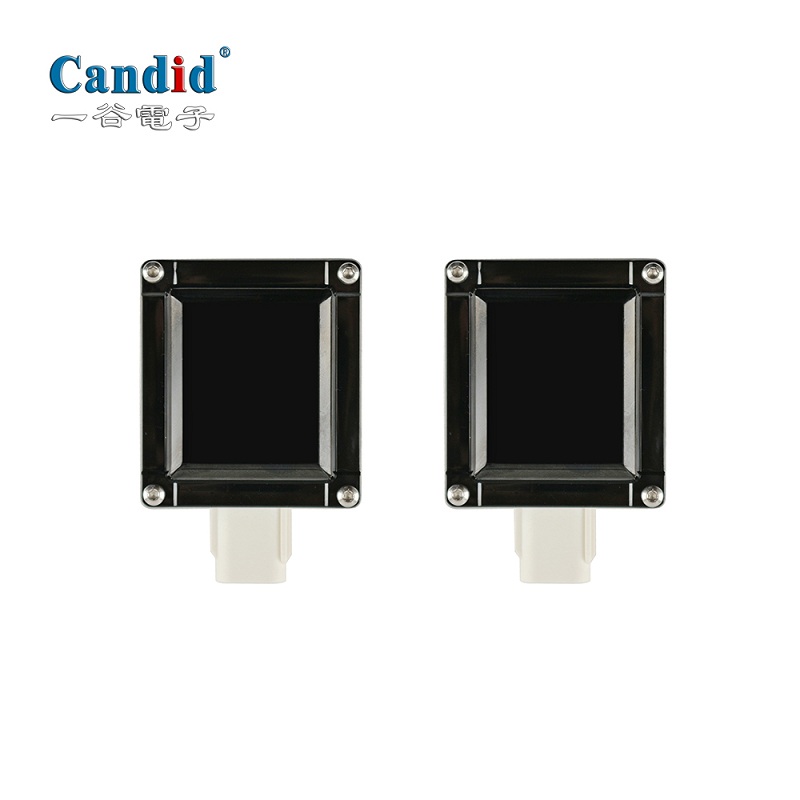

マイクロ波レーダー死角検知システムBSD-24G
Features:
This BSD (blind spot detection) system is used for detecting the objects in the blind area of the rear and side field of the vehicle when you are driving. When a vehicle (or other moving object) enters into the detection range, the BSD system will alert the driver with LED light blinking or/and Buzzer sound beeping to let the driver know the safe timing for lane change, thus significantly lower the potential risks of collision accidents and save lives. It can also be applied for the purpose of vandalproof and antiriot for safeguard when you stay in a car.
This BSD (blind spot detection) system is used for detecting the objects in the blind area of the rear and side field of the vehicle when you are driving. When a vehicle (or other moving object) enters into the detection range, the BSD system will alert the driver with LED light blinking or/and Buzzer sound beeping to let the driver know the safe timing for lane change, thus significantly lower the potential risks of collision accidents and save lives. It can also be applied for the purpose of vandalproof and antiriot for safeguard when you stay in a car.
.jpg)
-(3).jpg)
.jpg?imageView2/1/w/116/w/74)
-(3).jpg?imageView2/1/w/116/w/74)
顔立ち
24G Hz, high sensitive microwave radar sensor
Work under all kinds of weather and brightness condition
Suitable for both high speed and low speed driving status
Wide Detection range: 3x15 meters covering side and rear blind area
With LED light warning and buzzer sound warning, dual alert assurance
Hidden and non-drilling installation, no impact on vehicle’s appearance
Vehicle door open warning function optional
OE quality standard; extra long-term 3 years warranty
pass EMC & FCC certification testing
24g microwave radar bsd
Work under all kinds of weather and brightness condition
Suitable for both high speed and low speed driving status
Wide Detection range: 3x15 meters covering side and rear blind area
With LED light warning and buzzer sound warning, dual alert assurance
Hidden and non-drilling installation, no impact on vehicle’s appearance
Vehicle door open warning function optional
OE quality standard; extra long-term 3 years warranty
pass EMC & FCC certification testing
24g microwave radar bsd
仕様
| 動作周波数 | 24GHz帯 |
| 側面検出範囲 | 3メートル |
| 後方検出範囲 | 15メートル |
| 水平角度 | 120°C |
| 目標レートの更新 | 50Hzの |
| 検出範囲精度 | 0.36メートル |
| 検出角度誤差範囲 | 1º |
| 相対速度検出誤差範囲 | ±0.25メートル/秒 |
| アラーム相対速度 | 対象車両と車両の相対速度が140km/h未満の場合、システムは作動しています。 |
| 検出されたターゲットの最低速度 | 目標の相対速度は 2.5 km/h 以上です。 |
| 応答時間 | 50ミリ秒 |
| アンテナトンネル | 1Tx 1R |
| アンテナ送信出力 | 12dBmの |
| IPレーティング | IP67準拠 |
| 動作電圧 | 9V〜16V(標準12V) |
| 消費電力 | ≤500mA @12VDC |
| 動作温度 | -40°C–+85°C |
| 貯蔵温度 | -40°C–+95°C |

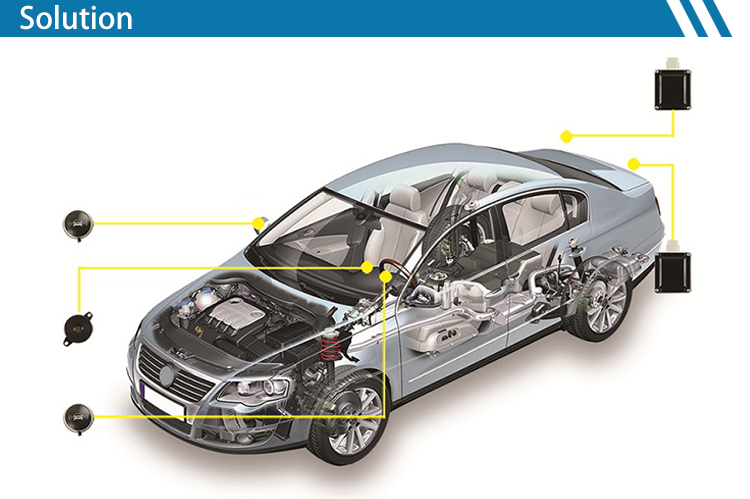

アプリケーション
%20(4).jpg)
%20(5).jpg)
%20(6).jpg)
%20(7).png)
