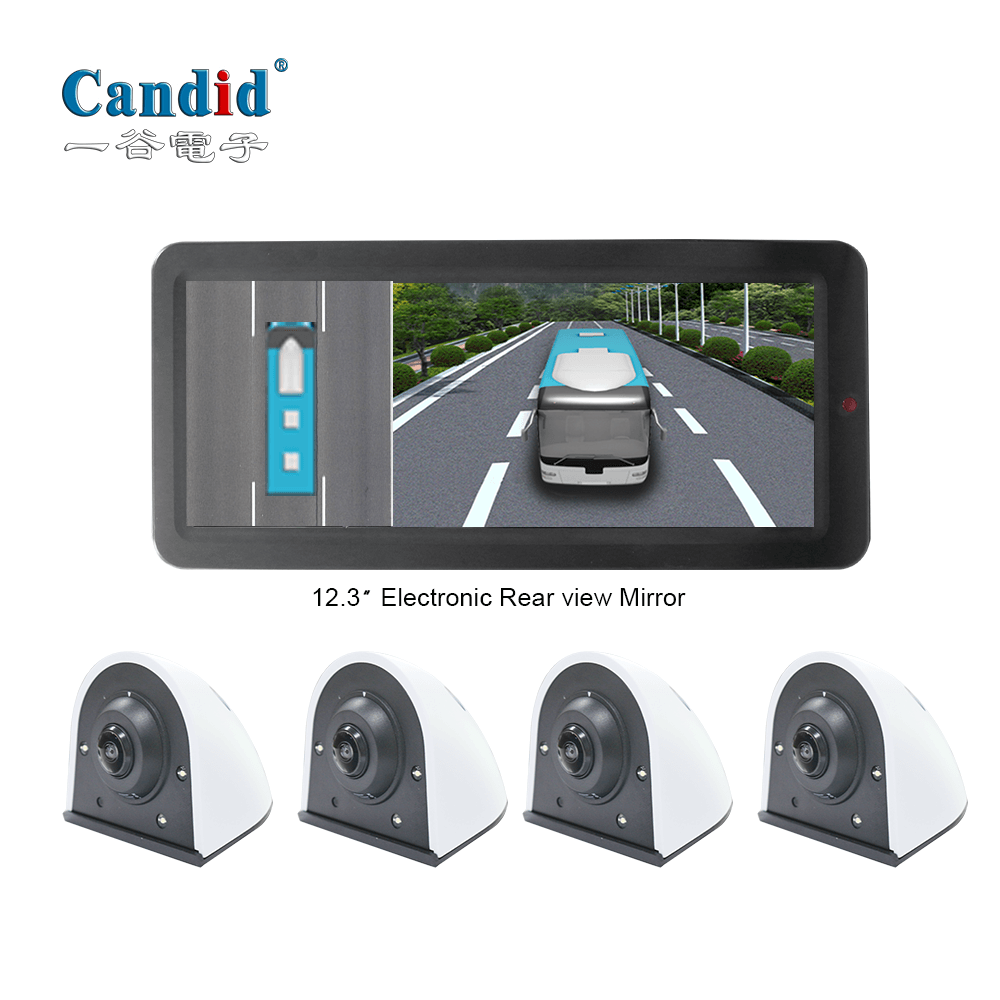

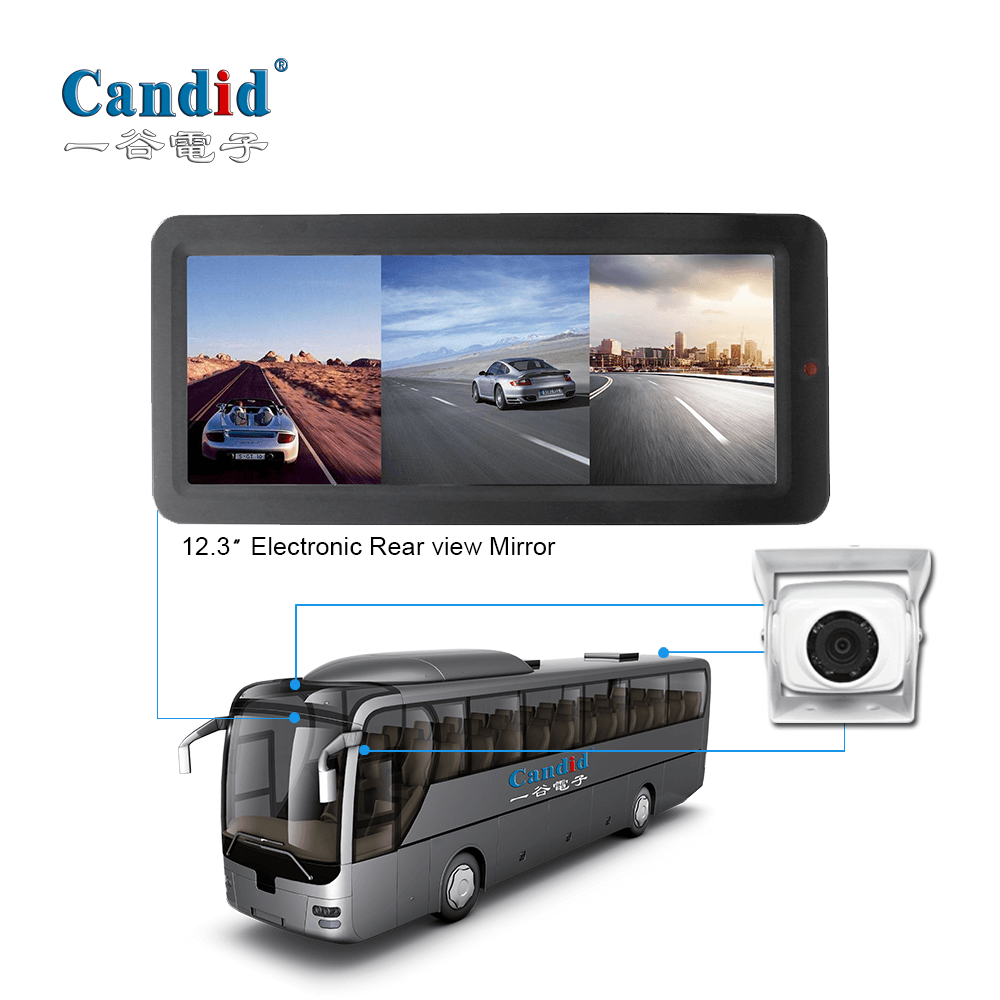

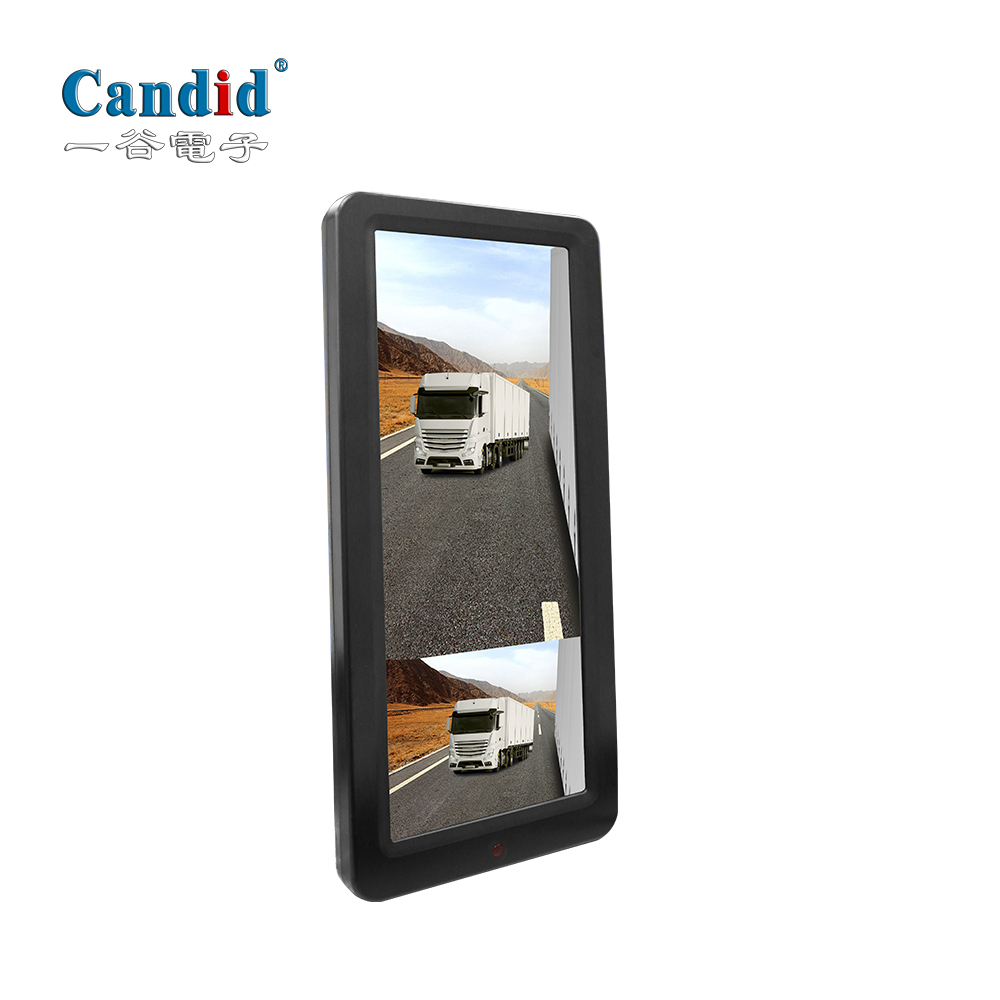

12.3インチ電子バックミラーブラインドスポットディテクションモニターシステム
ドライバーの死角を警告で確認・検出するための最良の選択であり、このシステムはさまざまな安全運転製品と互換性があります。お問い合わせをお待ちしております!
顔立ち

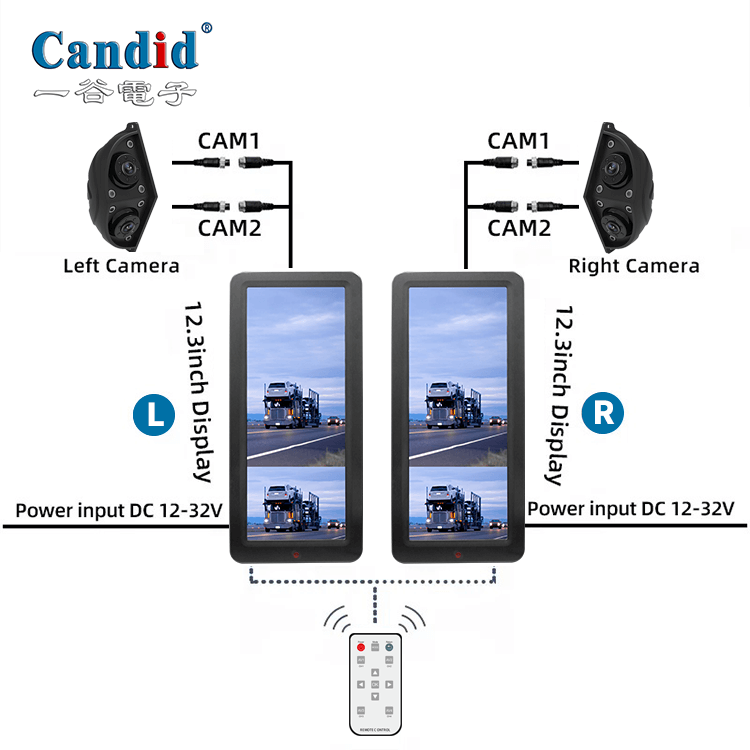

1. 4CH x 1080P vedio input/output
2. Compatible with hybrid input of CVBS and AHD signals
3. Automatic backlight adjustment.
5. Driving video recording starts once the syestem is powered on, driver will be reminded by the screen display if the camera is disconnected or no SD card inserted.
6. Resolution ratio: 1920RGB(H)X720(V).
7. Brightness: 700cd/m2.
8. EMC-R46 quality standard.
9. Super wide voltage : DC 12V-32V
10. Customized develop with specific requirement
2. Compatible with hybrid input of CVBS and AHD signals
3. Automatic backlight adjustment.
5. Driving video recording starts once the syestem is powered on, driver will be reminded by the screen display if the camera is disconnected or no SD card inserted.
6. Resolution ratio: 1920RGB(H)X720(V).
7. Brightness: 700cd/m2.
8. EMC-R46 quality standard.
9. Super wide voltage : DC 12V-32V
10. Customized develop with specific requirement
仕様
12.3インチEミラーモニターの仕様:
デュアルレンズサイドビューカメラ仕様:
画面の種類 | TFTの |
画面サイズ | 12.3"(8:3) |
画面解像度比 | 1920 RGB(H)×720(V) |
ビデオ入力 | 2ウェイHD、2ウェイSD、1ウェイHD + 1ウェイSD、PAL入力とNTSC入力の両方に対応 |
プレビュー機能 | 12種類のマルチディスプレイモード分割 プレビュー |
ビデオ解像度 | 1920*1080 |
ビデオ品質 | 超クリア、高精細、標準、普通レベル、合計4つのビデオ出力モードが利用可能です |
記録モード | 自動録画の電源を入れる |
オーディオ入力 | 1チャンネルオーディオ入力、CH1航空コネクタ(オプション)をサポート |
メモリーカード | TFカード、最大サポート512G、サイクリング記録 |
アップグレードモード | TFカードによるサポートアップグレードシステム |
入力電圧 | 直流:+12V ~+30V |
使用温度 | -30°Cへの+70°C |
作業相対湿度 | 20%から+ 80%(RH) |
デュアルレンズサイドビューカメラ仕様:
イメージセンサー | ソニーIMX307(AHD) |
TVモード | PAL / NTSCの |
撮像素子 | 1/2.8インチ |
動作電圧範囲 | DC12V(7.5-16V) |
動作電流 | 94mA±10mA |
消費電力 | 1.128W DC12V |
ビデオ出力 | 1.3±0.2Vpp 75Ω |
便利なピクセル | 1920*1080 |
最小lllomination | 0.01ルクス |
信号対雑音比 | 46デシベル |
解像度比 | 1080pの |
動作温度 | -20°C~ +70°C |
貯蔵温度 レンズの角度 | -40°C~+85°C 水平74°/ 56° |
